How to change throttle of SuperHandy 4 wheeled scooter - GUT161
Step 1:

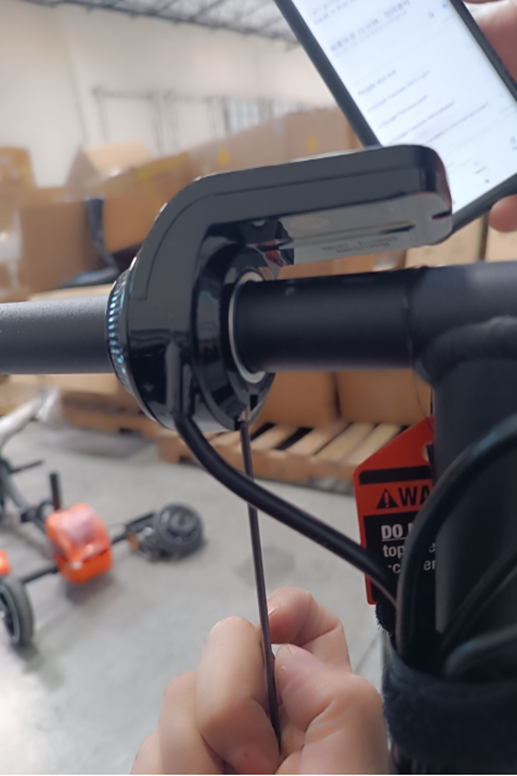

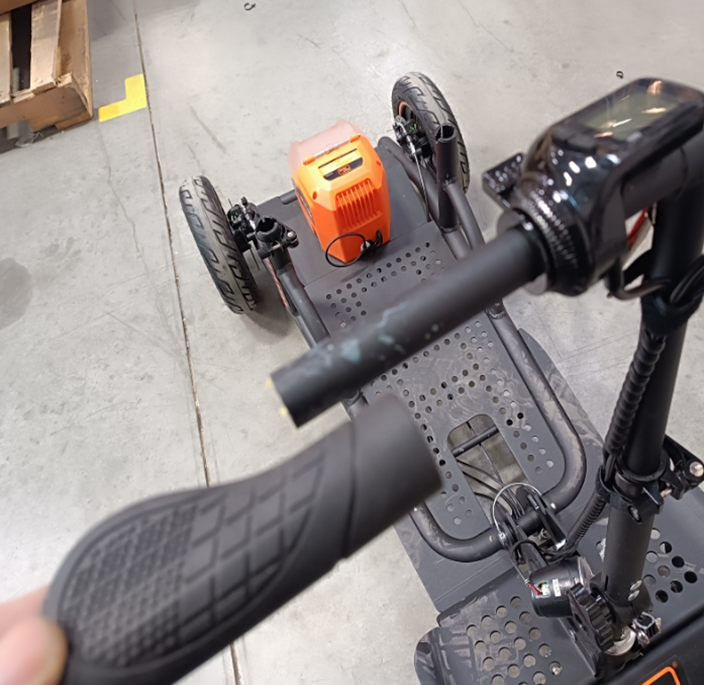

Remove the handle by loosening the screw on the throttle.
Step 2:

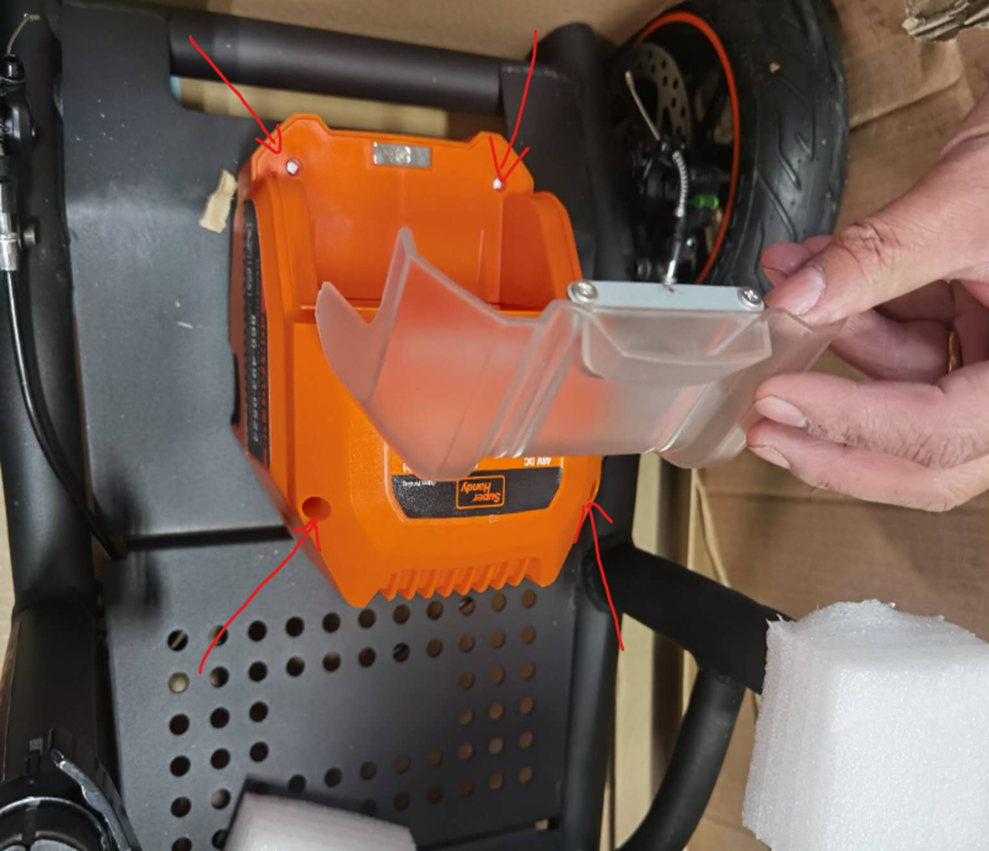

Open the cord box by unscrewing the four screws.
Step 3:

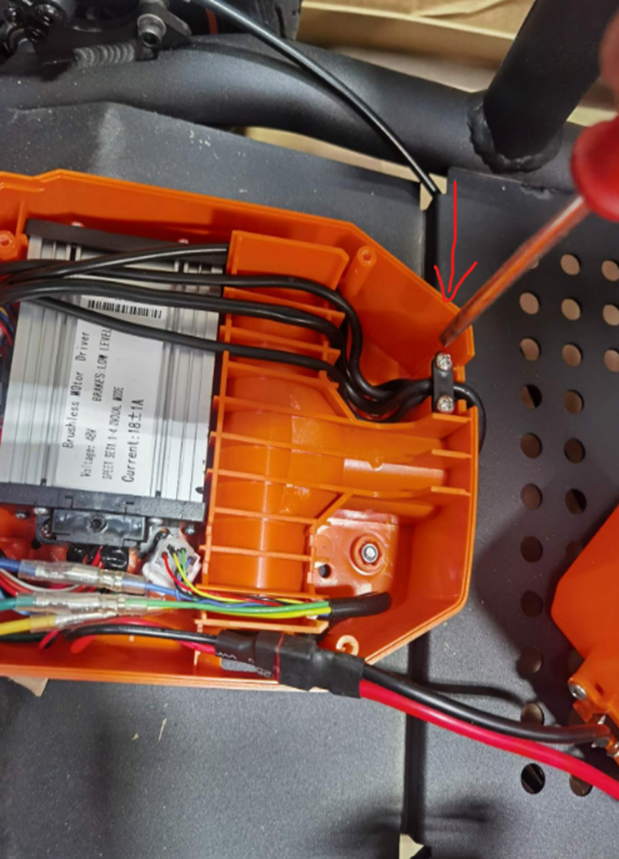

Unscrew the two screws on the cover to access and remove the throttle cord.
Step 4:
Disconnect the main cable.
Step 5:

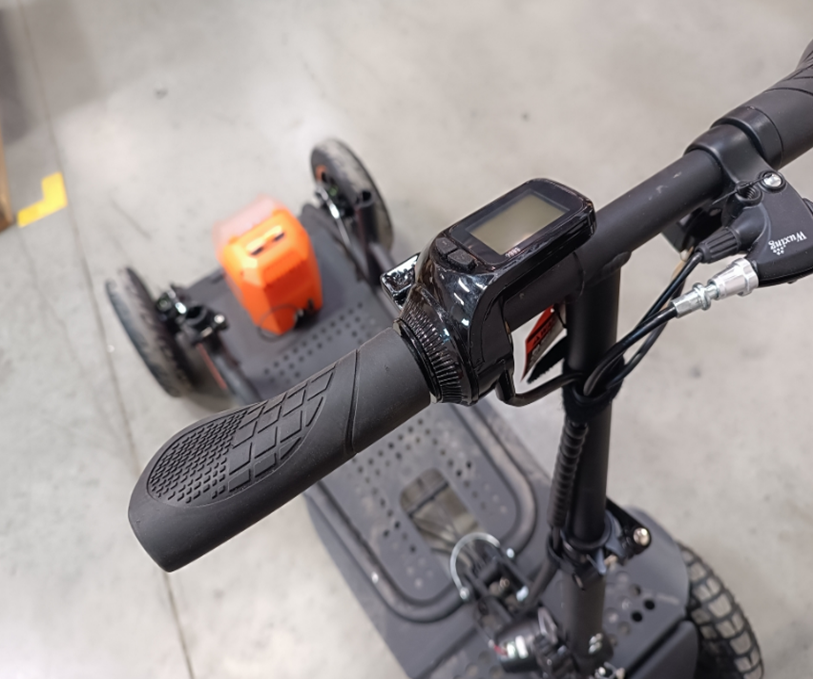

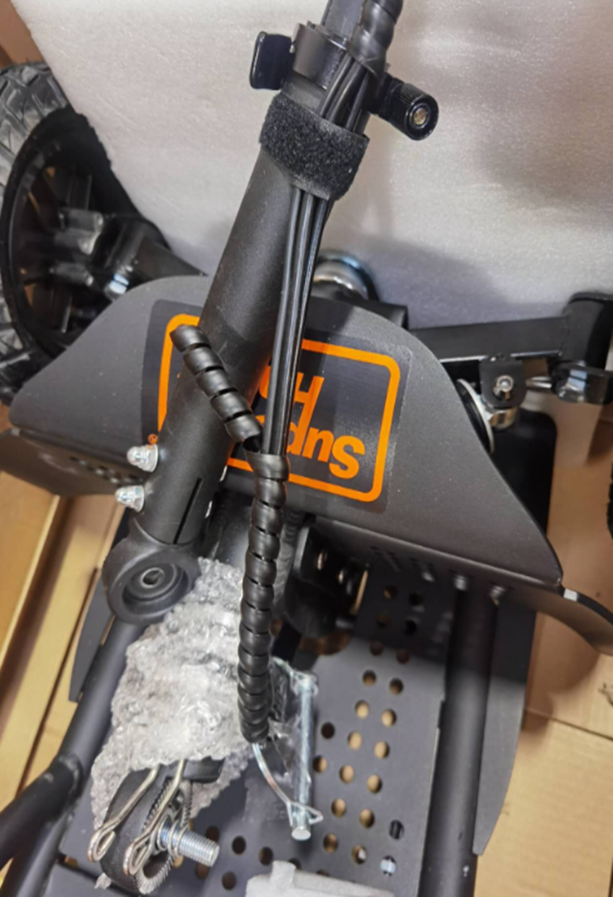

Loosen the cord protector and ties, then remove the throttle from the handle.
Step 6:
Assemble the new throttle by following similar steps. Pay attention to the following details:

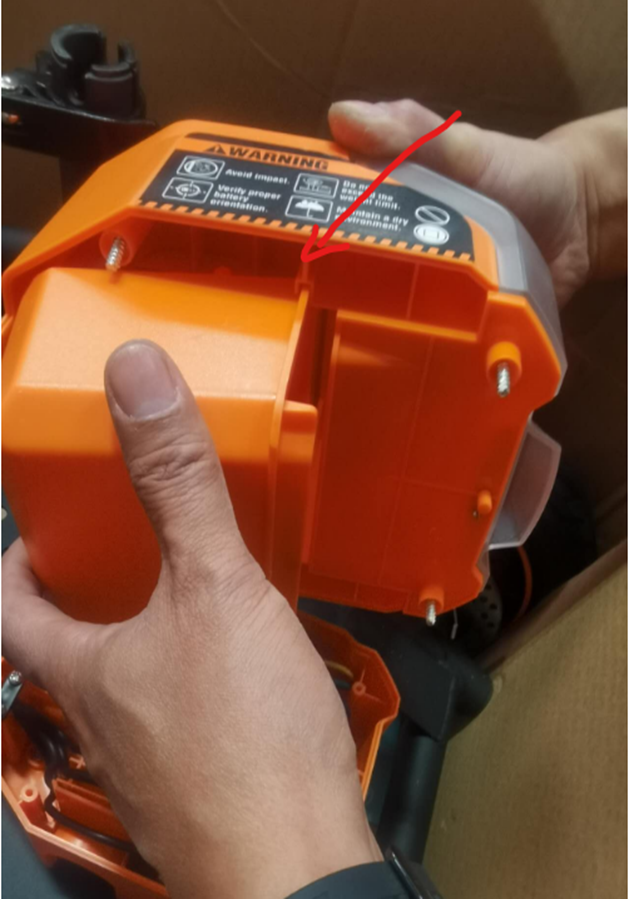

- When assembling the box, ensure the slot is correctly positioned for easy setup.
- Organize all cables neatly.

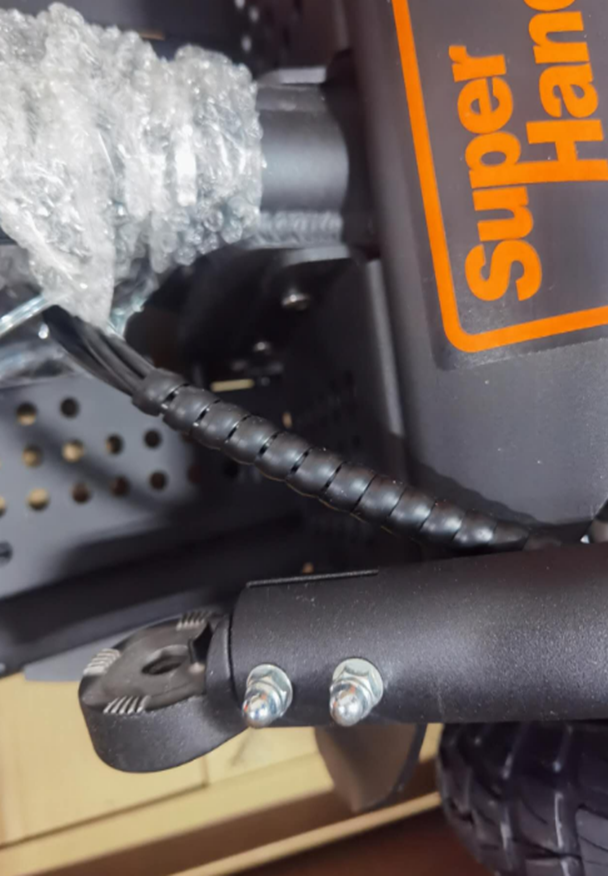

- Tighten screws securely and reset the cord protector.
