GUO077&GUO079&GUO084-thrust plate(NEW/OLD VERSION)

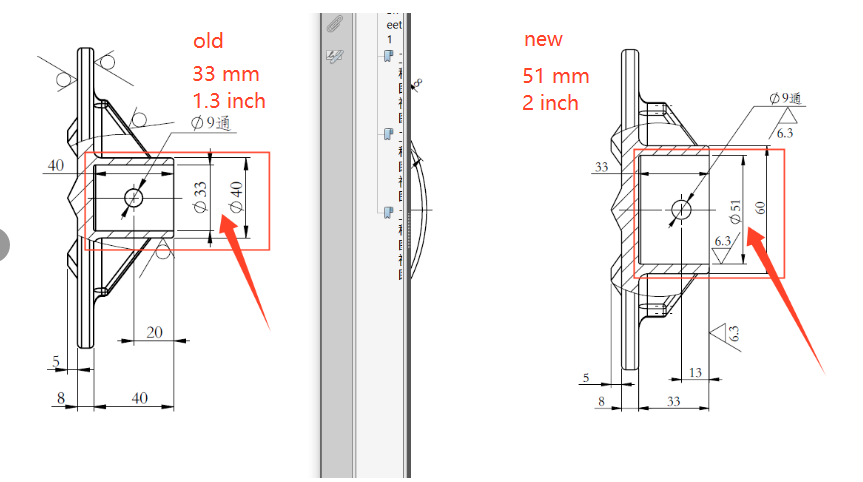

Regarding the thrust plate of the log splitter, due to improvements made by the factory to the product, if a customer requires this part, it is necessary to confirm with them in advance the diameter of the central hole in the push plate they have. This will help distinguish between the new and old versions, as they are not interchangeable.

K3#8.05.00.153  GUO077&GUO079&GUO084-thrust plate(NEW VERSION 51mm)

K3#8.05.00.175  GUO077&GUO079&GUO084-thrust plate(OLD VERSION 33mm)
